XR3D-6D
Powerful 3D Perspective™ Technology
Product Highlights
- 3D Perspective™ Dual Energy Imaging
- Icon-Driven GUI with LCD Touch Screen
- Threat Alert and Material Classification
- One-touch, Instant View Last Five Bags
- Dynamic Pseudo Density Layering
- Multilingual Operation
- Auto-Archiving
- Network-Ready
Overview
POWERFUL 3D PERSPECTIVE™ TECHNOLOGY

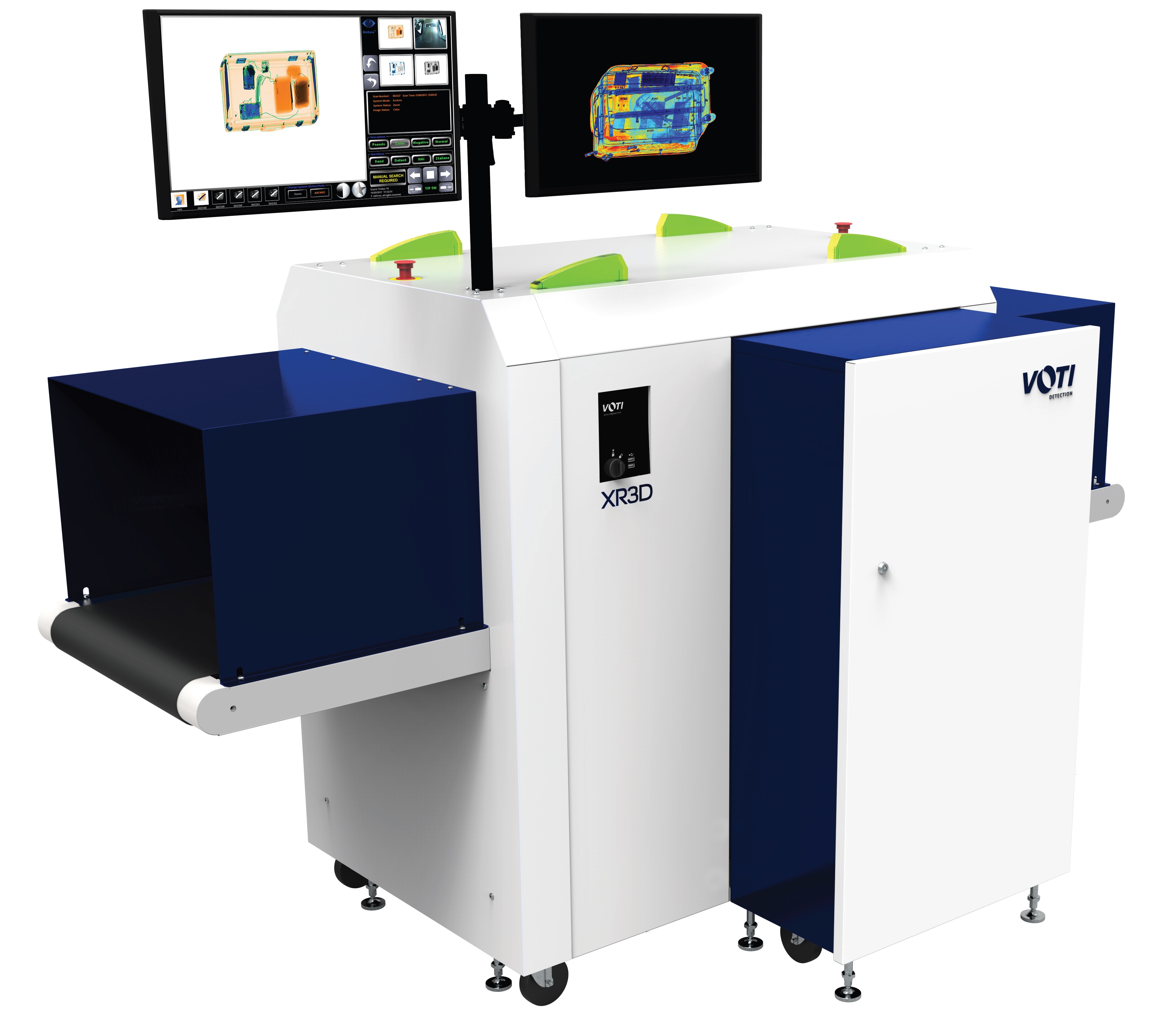

The XR3D-6D, powered by BioSans™, is an easy to operate, dual source scanner that provides operators with extremely detailed, more revealing images, enhanced detection capabilities and a very low cost of ownership.
With a tunnel opening of 615 mm wide by 425 mm high (24.2” x 16.7”), the XR3D-6D is the ideal solution for a variety of usages such as critical infrastructures, transportation and border operations where screening of parcels, bags and mail is required.
VOTI’s scanners employ innovative 3D PerspectiveTM technology to deliver exceptional threat detection capabilities. Through an advanced intuitive touch screen interface, operators can manipulate and enhance scanned images in a variety of ways to better pinpoint and evaluate potential threats. The overall threat detection process is enhanced by a suite of software guided tools and features, including extended and configurable threat libraries.
Specifications
Technical Data Sheet
| Dimensions | Length (L): 2375 mm (93.5”) Height (H): 1398 mm (55”) Width (W): 1165 mm (45.9”) |
|---|---|
| Conveyor Height | 763 mm (30”) from floor |
| Tunnel Size | 615 mm x 425 mm (24.2” by 16.7”) |
| Max. Object Size | 600 mm x 400 mm (23.6” by 15.7”) |
| Conveyor Speed | 0.22 m/s (44’/min.) variable speed, bi-directional |
| Conveyor Load | 160 kg (353 lbs) max. evenly distributed weight |
| Approx Weight | 744 kg (1640 lbs) |
| System Power | 120/240 VAC 10/5 A 50/60 Hz |
