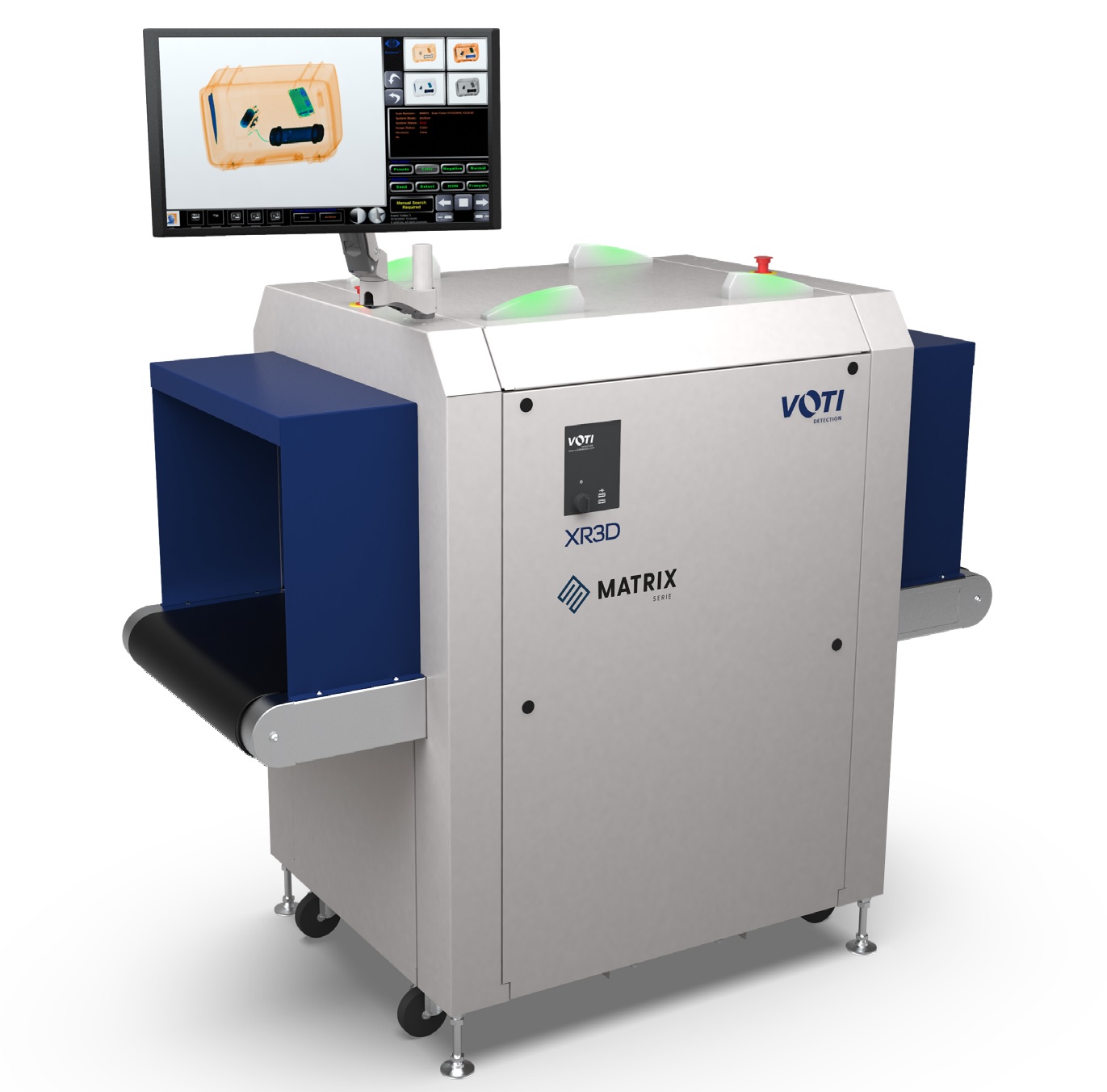

XR3D-60S
Powerful 3D Perspective™ Technology
Product Highlights
- 3D Perspective™ Multi Energy Imaging
- LCD Touch Screen with multi-touch zoom
- Threat Alert and Material Classification
- One-touch, Instant View Last Five Bags
- Dynamic Pseudo Density Layering
- Multilingual Operation
- Auto-Archiving
- Network-Ready
- Best-In-Class Image Quality
- Linux based BioSans MATRIX Operating System
- SSD with Power Loss Prevention
- VotiINSIGHTS™ Ready
Overview
POWERFUL 3D PERSPECTIVE™ TECHNOLOGY
The XR3D-60S MATRIX Series, powered by BioSans MATRIX™, is an easy to operate, single source scanner that provides operators with extremely detailed, more revealing images, enhanced detection capabilities and a very low cost of ownership. The new line of MATRIX Series scanners offers best-in-class technology, achieving significant improvements in wire resolution, steel penetration and spatial resolution. MATRIX Series models are also the first XR3D scanners that can be connected through VotiINSIGHTS™, VOTI’s proprietary web-based platform for centralized and remote fleet management, providing fleet managers up to the minute information about their scanner fleet's health and operational status.
With a tunnel opening of 615 mm wide by 425 mm high (24.2” x 16.7”), the XR3D-60s MATRIX Series is the ideal solution for a variety of usages such as critical infrastructures, transportation and border operations where screening of parcels, bags and mail is required.
VOTI’s scanners employ innovative 3D Perspective™ technology to deliver exceptional threat detection capabilities. Through an advanced intuitive touch screen interface, operators can manipulate and enhance scanned images in a variety of ways to better pinpoint and evaluate potential threats. The overall threat detection process is enhanced by a suite of software guided tools and features, including extended and configurable threat libraries.
Specifications
Technical Data Sheet
| Dimensions | Length (L): 1717 mm (67.6”) Height (H): 1433 mm (56.4”) Width (W): 831 mm (32.7”) |
|---|---|
| Conveyor Height | 762 mm (30”) from floor |
| Tunnel Size | 615 mm x 425 mm (24.2” by 16.7”) |
| Max. Object Size | 600 mm x 400 mm (23.6” by 15.7”) |
| Conveyor Speed | 0.22 m/s (44’/min.) variable speed, bi-directional |
| Conveyor Load | 165 kg (364 lbs) max. evenly distributed weight |
| Approx Weight | 400 kg (882 lbs) |
| System Power | 115VAC +/-10%, 50/60Hz, 15A Max 230VAC +/-10%, 50/60Hz, 10A Max |
