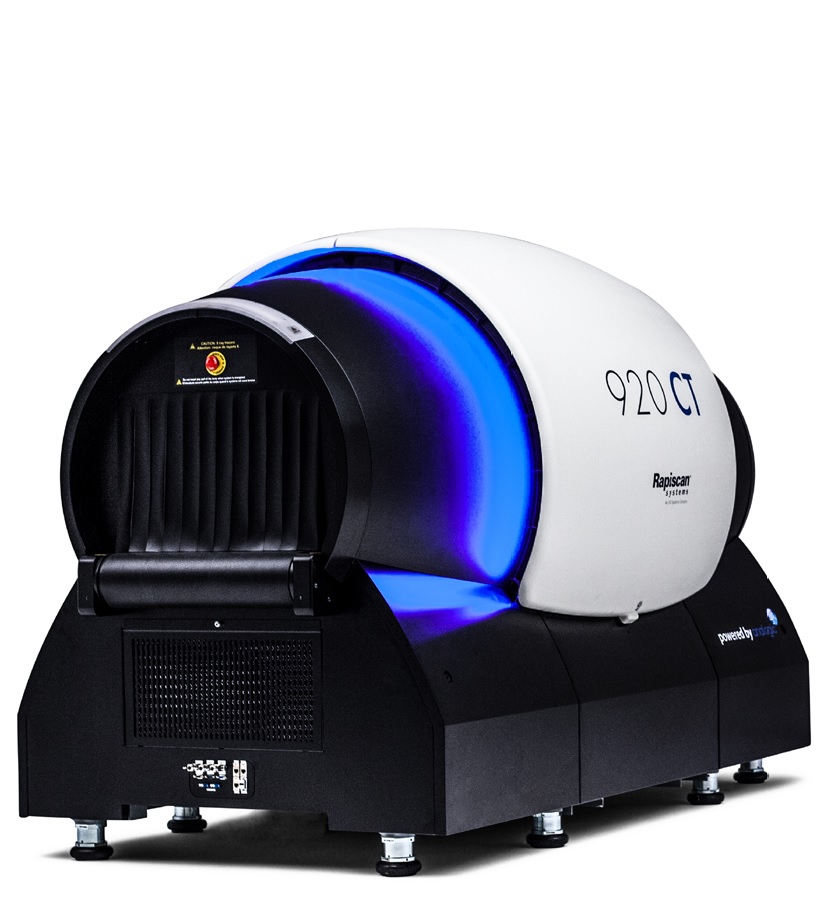

RAPISCAN 920CT
920CT is the Rapiscan® computed tomography (CT) checkpoint screening system for aviation cabin baggage. It provides high resolution full 3D images, superior threat detection, improved passenger throughput, and operational efficiencies
Product Highlights
- High resolution full 3d imaging
- Bearing free & inductive coupling CT technology
- Future proof technology
- Full integration
- Ecac & TSA approved
Overview
HIGH RESOLUTION FULL 3D IMAGES
High quality images allow for On Screen Inspection and Resolution (OSIR) for image analysis of both automated alarms as well as other prohibited items.
FULL INTEGRATION
Integrates with leading automated tray return and baggage handling systems including Rapiscan® TRS™ Flight.
AUTOMATED DETECTION
Advanced algorithms assist the operator in highlighting potential explosives, dense objects, and emerging threats.
PATENTED DUAL-ENERGY TECHNOLOGY
Dual-Energy technology and sophisticated algorithms provide a high level of material discrimination and automatic detection of explosives.
3D THREAT IMAGE PROJECTION (TIP)
Based on the latest regulatory requirements, assists in training and evaluating operators.
BEARING-FREE & INDUCTIVE COUPLING CT TECHNOLOGY
Innovative bearingless design, and no brush, contactless power transfer increase operational availability and reduce maintenance costs.
COMPACT FOOT PRINT, AESTHETIC DESIGN
Makes it easy for airports to integrate into checkpoints and upgrade from current 2D X-ray scanners.
Specifications
Technical Data Sheet
| Dimensions | L 2,700 mm (106.3 in) W 1,440 mm (56.7 in) H 1,750 mm (68.9 in) |
|---|---|
| Tunnel Size | W 620 mm (24.4 in) H 420 mm (16.5 in) |
| Conveyor Height | 840 mm (33.1 in) |
| Weight (Approx) | 1980 Kg (4,365 lbs) |
