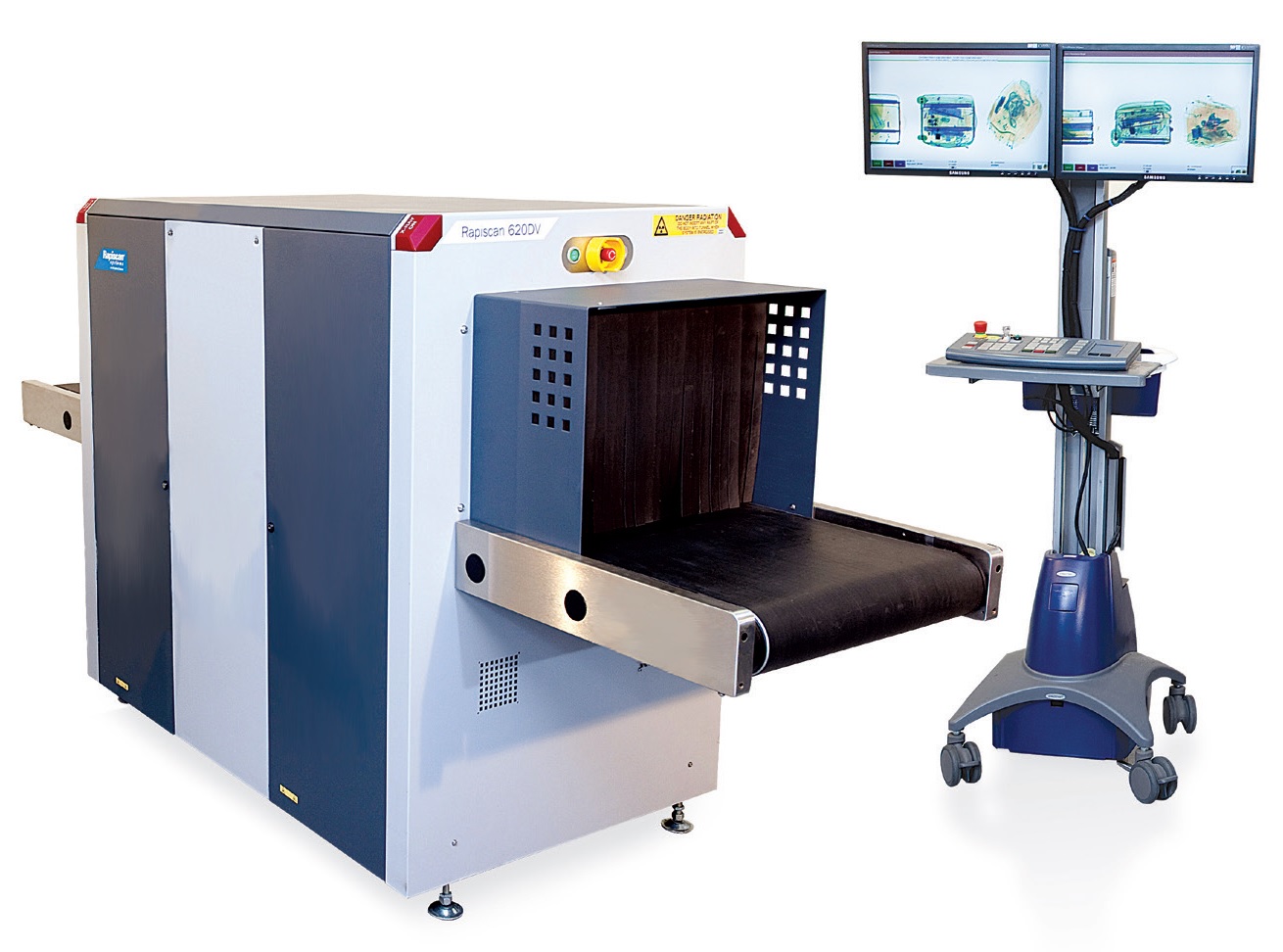

RAPISCAN 620DV
CHECKPOINT SCREENING SYSTEM APPROVED AS AN ADVANCED TECHNOLOGY (AT) SYSTEM BY U.S TSA, LIQUID EXPLOSIVE DETECTION SYSTEM (LEDS) BY E.U.
Product Highlights
- High performance advanced checkpoint screening
- Dual view technology
- Largest global regulatory approvals
Overview
THE RAPISCAN 620DV IS AN ADVANCED CHECKPOINT SCREENING SOLUTION, DESIGNED FOR AVIATION AND HIGH SECURITY APPLICATIONS. IT USES INNOVATIVE DUAL VIEW TECHNOLOGY TO GENERATE A HORIZONTAL AND VERTICAL VIEW OF THE OBJECT UNDER INSPECTION.
Rapiscan 620DV has been approved and included on the qualified list applicable to the U.S. TSA Advanced Technology (AT) checkpoint program as well as the qualified list applicable to E.U. ECAC Liquid Explosive Detection System (LEDS) Common Evaluation Process (CEP) for security equipment.
Rapiscan 620DV provides unsurpassed image quality, regulatory approved detection alert of solid explosive software (Target™) and Liquid Explosive Identification Software (aLEXis™) with the largest global approvals and certifications.
DETECTION OF EXPLOSIVES AND NARCOTICS ALERT
Target™ and NARCScan™ are designed to assist operators in the detection of a range of explosives and narcotics respectively in real time during the scanning process by marking a potential threat on the X-ray image. Rapiscan detection algorithms are based on regulatory material analysis techniques.
MEETING TODAY’S MOST STRINGENT GLOBAL REQUIREMENTS
The Rapiscan 620DV meets the most rigorous detection and image quality requirements as set by the U.S. Transportation Security Administration (TSA), U.K. Department of Transport (DfT), European Union, French civil aviation authority (STAC), and Transport Canada (TC).
EASE OF USE PROVIDING HIGHEST THROUGHPUT
With over 13 image processing tools and detection alert algorithm functions, the feature rich software allows the operator to more easily and accurately search for contraband.
REGULATORY COMPLIANCE
Rapiscan 620DV performance is in full compliance with the European Union regulations (EC) No. 300/2008, (EU) No. 2015/1998 and Commissions Decision C (2015)8005 for aviation security.
DUAL VIEW ADVANCED TECHNOLOGY
As mandated by US and EU regulators, the 620DV utilizes a dual view technology which produces two simultaneous images (vertical and horizontal views) of the scanned object. It provides a more complete image, thereby reducing the need for repositioning and rescanning and enabling rapid, accurate and comprehensive threat detection.
Specifications
Technical Data Sheet
| Dimensions | Length: 2,880 mm (113.4 in.) Width: 1,430 mm (56.3 in.) Height: 1,418 mm (55.8 in.) |
|---|---|
| Tunnel Size | 640 mm (W) x 430 mm (H) (25.2 x 16.9 in.) |
| Conveyor Speed | 0.22 m/sec (43.3 ft./min) |
| Conveyor Load (Max) | 165 Kg (364 lbs) evenly distributed |
| Conveyor Height | 826 mm (32.5 in.) |
| Weight (Approx) | Net: 1000 Kg (2,205 lbs) |
| System Power | 115/230 VAC ±10%, 60/50Hz |
