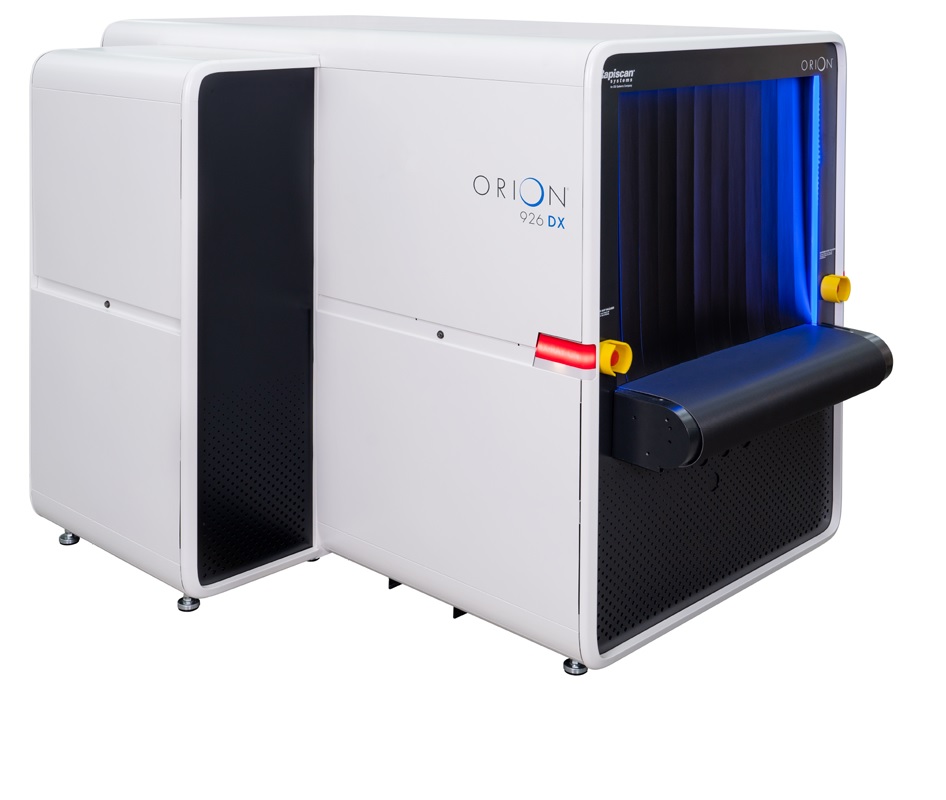

ORION 926DX

Overview

BEST IN CLASS IMAGE
Potential threats are becoming increasingly challenging to identify. Rapiscan’s 926DX offers 41 AWG standard wire resolution and 38 mm standard steel penetration with .8mm vertical & horizontal spatial resolution, complete its high performance screening system. ORION® with ScanOS 64-bit operating system was purpose-built to improve visibility during the screening process to help operators identify and mitigate potential threats faster leveraging innovative features.

GEOMETRIC DISTORTION CORRECTION
A near perfect aspect ratio correction which ensures the most accurate image of objects scanned are presented with the correct aspect ratio regardless of orientation and position on the belt.

SPECTRUM COLOR PALLETS
Configurable color pallets including Classic 4-color, Spectrum 4 and Spectrum 7 to better visualize potential threat objects.

DUAL MODE AUTO Z_EFF
The Dual Mode Z-effective feature aids the operator in the identification of organic materials, accurately and quickly, either in Range Mode which highlights areas based on operator selected Z-effective values of 7, 8 or 9, or in Interactive Mode which gives the operator the option to display the Z-effective number of a selected pixel. This capability enhances both the efficiency and accuracy of the material identification screening process.

OPERATOR ASSIST TOOLS
Target™ function highlights regions of an X-ray image that could be explosive material. The algorithm estimates factors such as atomic number, density, and size and then compares these values to characteristics of known explosive materials to identify possible threats.

NARCScan algorithm is designed to highlight areas of an image that might contain narcotics. NARCScan works in real time, using a proprietary algorithm to process scan data to estimate material characteristics including atomic number, density, and size.

Density Threat Alert (DTA) visually highlights high-absorbing regions of the X-ray image. The algorithm generates a visible alert on the screen and the user can select the density threshold at which this alarm will activate, to best meet the needs of their application.

HIGH SPEED CONVEYOR
Leveraging geometric distortion correction and advanced image reconstruction, the Orion Suite continues to re-imagine X-ray screening with the best in class image quality at the highest belt speeds. 926DX has been designed with a configurable conveyor qualified at three speeds, 0.2m/s, 0.35m/s and 0.5m/s. The speed can be adjusted in the field by qualified Service staff as your operational needs flex into the future.
