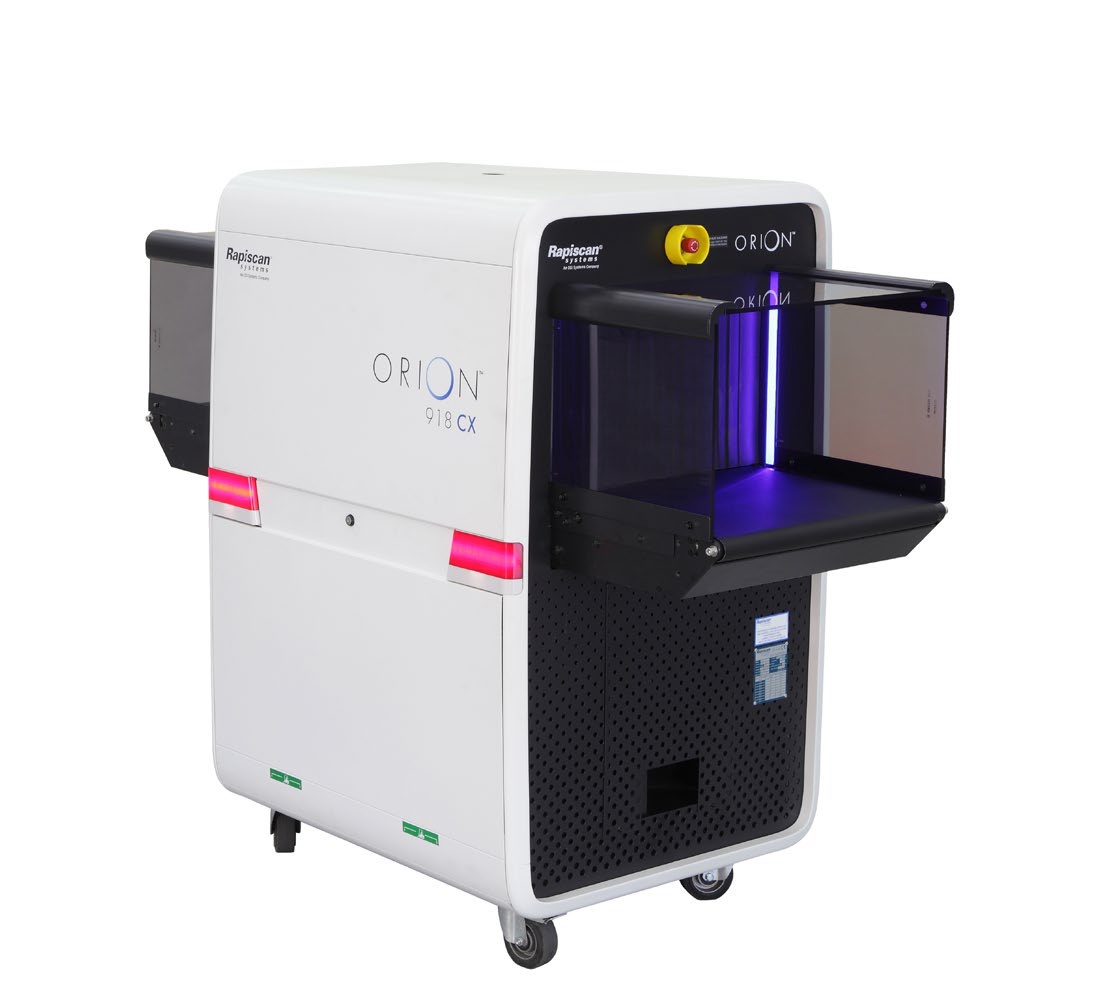

ORION 918CX
The new 918CX is a High Performance, compact and versatile 540mm by 360mm tunnel X-Ray system with exceptional image quality and excellent threat detection alert capabilities
Product Highlights
- Industry best resolution & material discrimination
- Explosives & narcotics detection
- Low density image enhancement
- Matrixing, networking & remote viewing
Overview
SPECTRUM 4-COLOR IMAGING
918CX can present images to the operator in the Classic 4-color and the new proprietary Spectrum 4-color (SP4) option providing superior image, allowing improved security by quick and accurate identification of threats and increase in throughput.
DUAL MODE ZEFF
This feature aids the operator in quick identification of organic materials, either in Range Mode which highlights areas based on operator selected Z-effective values of 7, 8 or 9, or in Interactive Mode which gives the operator the option to display the Z-effective number of a selected pixel.
EXPLOSIVES AND NARCOTICS DETECTION
Target and NARCScan are designed to detect a wide range of explosives and narcotics respectively in real time during the scanning process by marking a potential threat on the X-ray image. Rapiscan® Systems detection algorithms are based on regulatory approved material analysis techniques.
EUROPEAN AVIATION COMPLIANCE
918CX performance is in full compliance with the mandatory regulations (EC) No. 300/2008, (EC) Implementing Regulation 1998/2015 and update 815/2017, EC Implementing Decision 8005/2015 and update 3030/2017 for aviation security in the European Union.
Specifications
Technical Data Sheet
| Dimensions | L 1,657 mm (65.2 in) W 794 mm (31.3 in) H 1,356 mm (53.3 in) |
|---|---|
| Tunnel Size | W 540 mm (21.3 in) H 360 mm (14.2 in) |
| Conveyor Height | 830 mm (32.7 in) |
| Weight (Net) | 429 Kg (946 lbs) |
